- Water demineralizer PURE 500 with reverse osmosis module, dedicated to autoclaves BRAVO G4.

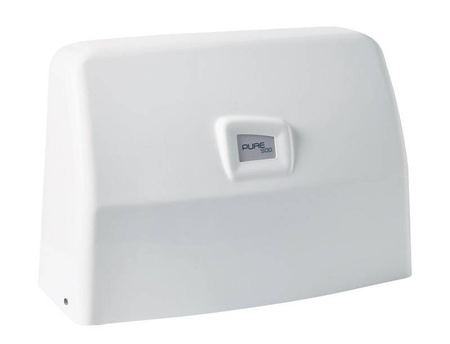

Water demineralizer PURE 500.
Dedicated to cooperate with autoclaves BRAVO G4 series.
Pure 500, is a professional water demineralizer with reverse osmosis module dedicated to the range of steam sterilizers BRAVO G4. Pure 500 is an interesting option for users requiring professional equipment with excellent quality and performance offered at a reasonable price.
Pure 500 draws water directly from the water mains and after purification supplies it directly to the BRAVO G4 autoclave. The tap water first passes through three pre-treatment filters (sediment, carbon and ion exchange). Then it is purified in the reverse osmosis system. The result is excellent quality demineralized water.
The quality of water used for sterilization has a direct impact on failure-free operation of each autoclave.
Solid plastic and steel construction, ergonomic shape, small dimensions and low weight perfectly affect the ergonomics of operation and aesthetics. PURE 500 can be integrated into the autoclave housing
The capacity of the filter set is about 800 liters of purified water. The capacity depends on the quality of the tap water. The autoclave uses an average of 0.5 liters of purified water per cycle.

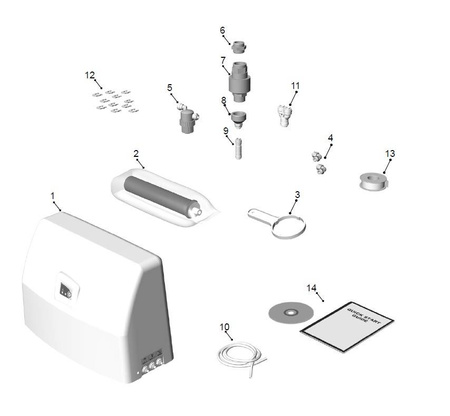

The set includes:
- (1) Demineralizer body,
- (2) Reverse osmosis module,
- (3) Reverse osmosis assembly and disassembly wrench,
- (4) Two 1/4 inch fittings,
- (5) Small filter,
- (6) 1/2 (female) - 3/4 male reduction,
- (7) Safety valve (WATER BLOCK®) with filter and adjustment key;,
- (8) Straight 3/4 inch tip,
- (9) Check valve,
- (10) 3/4 inch fill tube,
- (11) Quick release coupling,
- (12) 3/4 inch tube retaining clips,
- (13) Teflon tape,
- (14) Warranty card declaration of conformity user manual CD-ROM quick start guide,

Technical data:
- Weight: 7.3 kg
- Minimum water pressure: 1.5 bar.
- Maximum water pressure: 5 bar.
- Average capacity: approximately 800 liters.
- Dimensions: 461x206x328 mm.
